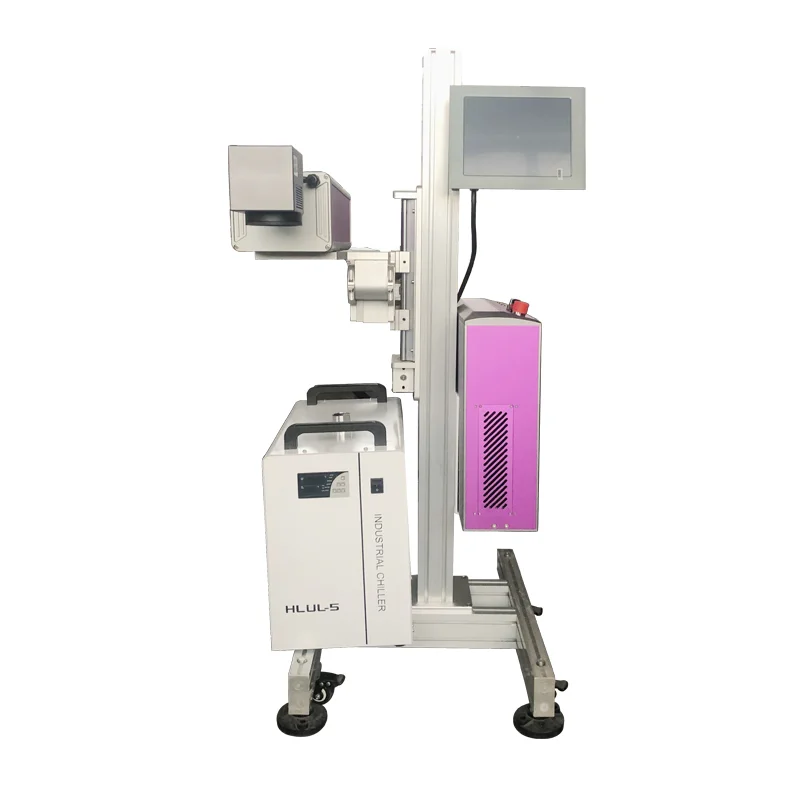

UV FLY LASER MARKING MACHINE



UV Laser Marking Machine is a high-precision, cold-processing laser system designed for ultra-fine and damage-free marking. Utilizing a 355 nm ultraviolet laser, it delivers highly accurate, high-contrast marks on heat-sensitive and delicate materials such as plastics, glass, ceramics, and coated metals.

Technical Specifications

Specifications
Laser Type UV Laser
Laser Wavelength 355 nm (Ultraviolet)
Available Power Options 3W / 5W / 10W
Marking Area 100 × 100 mm (Optional: 70×70 mm to 200×200 mm)
Marking Speed Up to 8,000–10,000 mm/s
Minimum Line Width 0.01 mm
Minimum Character Size 0.15 mm
Repeat Positioning Accuracy ±0.002 mm
Marking Depth 0.01 – 0.5 mm (depends on material)
Cooling Method Air Cooling (Standard) / Water Cooling (Optional)
Beam Quality (M²) < 1.2 (High beam focus for fine detail)
Supported Formats PLT, BMP, JPG, DXF, AI, etc.
Compatible Software EzCAD2 / EzCAD3
Control Interface USB (Standard), optional LAN
Power Supply 220V / 50–60Hz, Single Phase
Machine Lifespan ≥ 30,000 hours
Operating Temperature 15 °C – 35 °C
Humidity Range ≤ 80%, non-condensing
Optional Accessories Rotary Fixture, X-Y Table, Smoke Extractor

Inquiry Now

UV Laser Marking Machine is a high-precision, cold-processing laser system designed for ultra-fine and damage-free marking. Utilizing a 355 nm ultraviolet laser, it delivers highly accurate, high-contrast marks on heat-sensitive and delicate materials such as plastics, glass, ceramics, and coated metals. The UV laser’s short wavelength ensures minimal thermal impact, making it ideal for applications requiring non-contact, high-resolution engraving without deformation or discoloration. This machine is widely used in industries like electronics, medical devices, cosmetics packaging, and microelectronics for marking QR codes, serial numbers, logos, and traceability data with extreme clarity and permanence.
