Technical Specifications

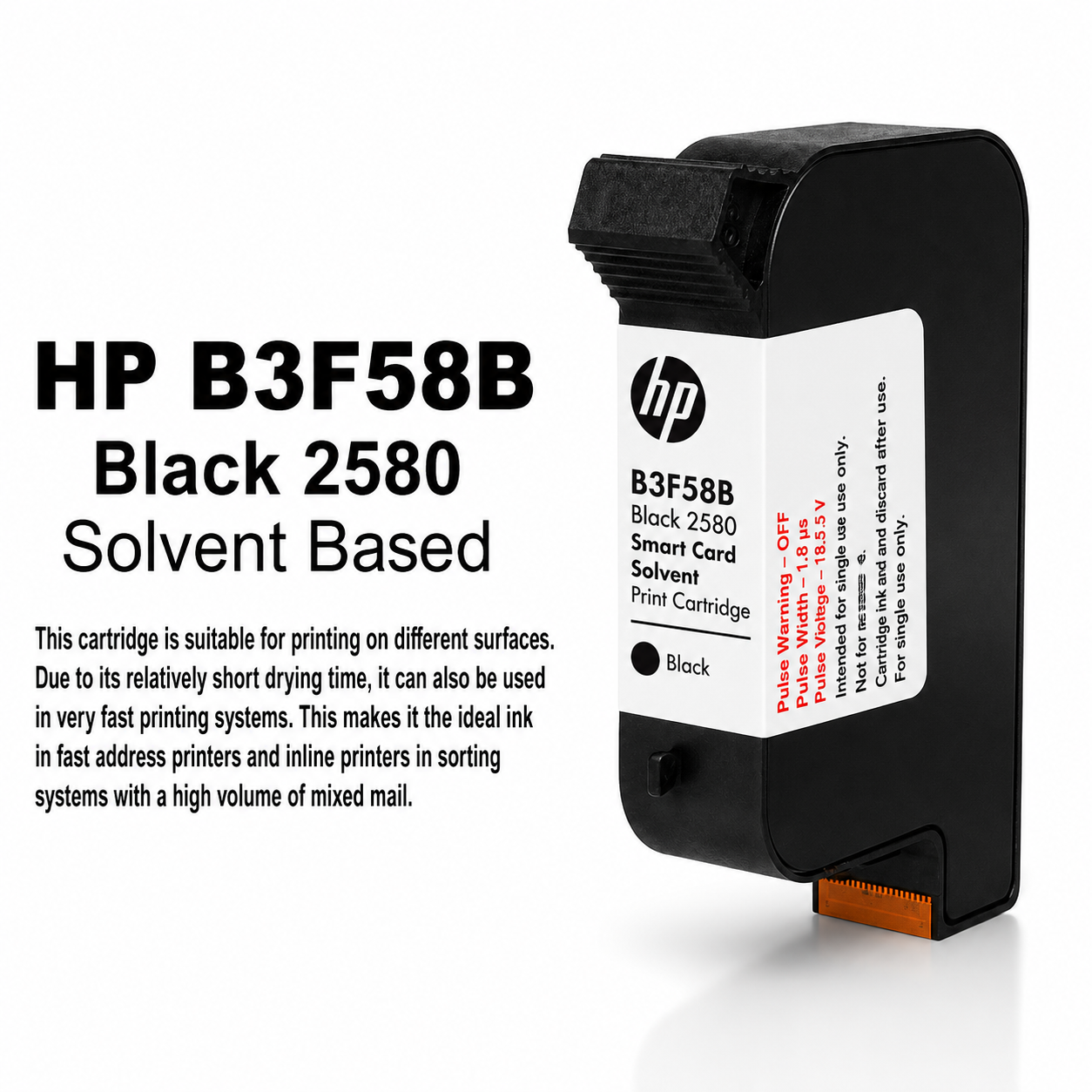

HP 2580 Black Solvent Smart Card Print Cartridge

Ink type –?Original HP solvent ink
Print cartridge type -?HP 45si Print Cartridge optimized for non-porous printing with built-in intelligence
Resolution-?Up to 600 dpi (recommended 300 x 300 dpi)
Nozzle count-?300
Print swath-?12.7 mm (0.5 in)
Throw distance-?Up to 5 mm
Firing voltage-?8.7 V
Fire pulse width-?1.8 microseconds
Pulse warming-?Off
Average drop volume-?B3F58B: 38 pl
Ink fill level-?B3F58B: 47 ml
Number of electrical interconnect pads-?52 + 4 (printhead + Smart card)
Operating conditions-?15 to 35? C / 59 to 95? F, 35 to 80% RH
Print cartridge servicing-?Use lint-free wipe that is either dry or wetted with ethanol or isopropyl alcohol (IPA)
Shipping/storage conditions-??-20 to 35? C / -4 to 95? F, 20 to 80% RH (if product is below 10? C, a 6-hour warm-up within the operating temperature is required prior to use) Altitude: 0 to 5000 meters (0 to 16,404 feet) Orientation: nozzles up or side

Inquiry Now

Start producing package product coding and marking where longer throw distances and faster speeds are required. HP 2580 solvent ink, combined with HP?s improved HP 45si Print Cartridge, lets you print quicker and jet farther. HP 2580 ink also delivers long decap and fast dry times to achieve high-productivity intermittent printing for industrial coding applications.
